Stainless Steel Wire Mesh

Stainless Steel Wire Mesh Is Widely used in petroleum industry,mine industry,chemical fiber industry,electroplating industry,environment protection etc.

Inquire Now

PRODUCT DESCRIPTION

Patterns for weaving:

Plain weave, twill weave,dutch weave.

Advantages:

Excellent resistance for acid, alkali, heat and corrosion.

Stainless Steel Wire Mesh

SPECIFICATION

Mesh	Wire diameter		Pore size		weight/100 square feet(lb)
Mesh	inch	mm	inch	mm	weight/100 square feet(lb)
1x1	0.08	2.03	0.92	23.37	41.1
2X2	0.063	1.6	0.437	11.1	51.2
3X3	0.054	1.37	0.279	7.09	56.7
4X4	0.063	1.6	0.187	4.75	104.8
4X4	0.047	1.19	0.203	5.16	57.6
5X5	0.041	1.04	0.159	4.04	54.9
6X6	0.035	0.89	0.132	3.35	48.1
8X8	0.028	0.71	0.097	2.46	41.1
10X10	0.025	0.64	0.075	1.91	41.2
10X10	0.02	0.51	0.08	2.03	26.1
12X12	0.023	0.584	0.06	1.52	42.2
12X12	0.02	0.508	0.063	1.6	31.6
14X14	0.023	0.584	0.048	1.22	49.8
14X14	0.02	0.508	0.051	1.3	37.2
16X16	0.018	0.457	0.0445	1.13	34.5
18X18	0.017	0.432	0.0386	0.98	34.8
20X20	0.02	0.508	0.03	0.76	55.2
20X20	0.016	0.406	0.034	0.86	34.4
24X24	0.014	0.356	0.0277	0.7	31.8
30X30	0.013	0.33	0.0203	0.52	34.8
30X30	0.012	0.305	0.0213	0.54	29.4
30X30	0.009	0.229	0.0243	0.62	16.1
35X35	0.011	0.279	0.0176	0.45	29
40X40	0.01	0.254	0.015	0.38	27.6
50X50	0.009	0.229	0.011	0.28	28.4
50X50	0.008	0.203	0.012	0.31	22.1
60X60	0.0075	0.191	0.0092	0.23	23.7
60X60	0.007	0.178	0.0097	0.25	20.4
70X70	0.0065	0.165	0.0078	0.2	20.8
80X80	0.0065	0.165	0.006	0.15	23.2
80X80	0.0055	0.14	0.007	0.18	16.9
90X90	0.005	0.127	0.0061	0.16	15.8
100X100	0.0045	0.114	0.0055	0.14	14.2
100X100	0.004	0.102	0.006	0.15	11
100X100	0.0035	0.089	0.0065	0.17	8.3
110X110	0.004	0.1016	0.0051	0.1295	12.4
120X120	0.0037	0.094	0.0064	0.1168	11.6
150X150	0.0026	0.066	0.0041	0.1041	7.1
160X160	0.0025	0.0635	0.0038	0.0965	5.94
180X180	0.0023	0.0584	0.0033	0.0838	6.7
200X200	0.0021	0.0533	0.0029	0.0737	6.2
250X250	0.0016	0.0406	0.0024	0.061	4.4
270X270	0.0016	0.0406	0.0021	0.0533	4.7
300X300	0.0051	0.0381	0.0018	0.0457	3.04
325X325	0.0014	0.0356	0.0017	0.0432	4.4
400X400	0.001	0.0254	0.0015	0.37	3.3
500X500	0.001	0.0254	0.001	0.0254	3.8
635X635	0.0008	0.0203	0.0008	0.0203	2.63

APPLICATION

Stainless Steel Wire Mesh Is Widely used in petroleum industry,mine industry,chemical fiber industry,electroplating industry,environment protection etc.

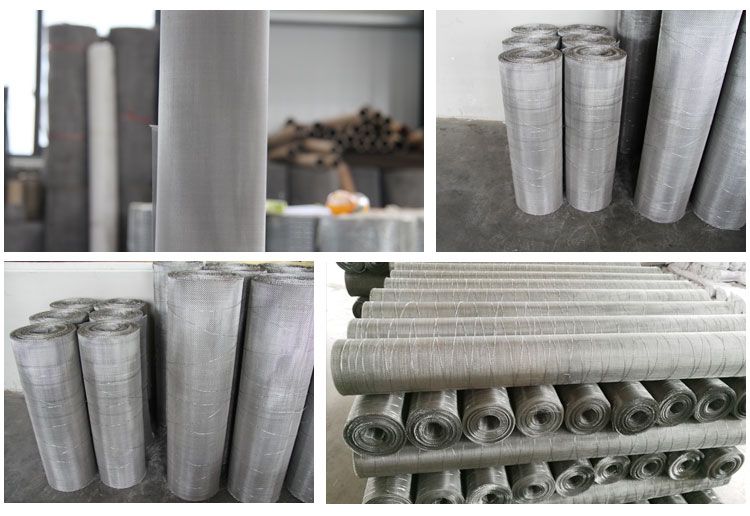

PACKING DETAILS

Stainless Steel Wire Mesh
